The AGRI-LONGER GII machines offer all the technical prowess of the POLY-LONGER and MULTI-LONGER GII ranges in a more compact format.
These models are aimed at individual farmers or municipal maintenance teams in small towns, but are also ideal for collective use by small agricultural equipment cooperatives. The rotor circuits in the new AGRI-LONGER GII models have a power of 45 hp/33 kW, making them perfectly-suited to their task.
All of the machines in this collection come with a safety break-back as standard, enabling the operator to perform a 116° rear sweep. The right arm comes in two different horizontal formats: 5 m or 6 m. The first, more compact option is ideally-suited to mowing operations in narrow tracks. The second is ideal for jobs requiring a greater reach.

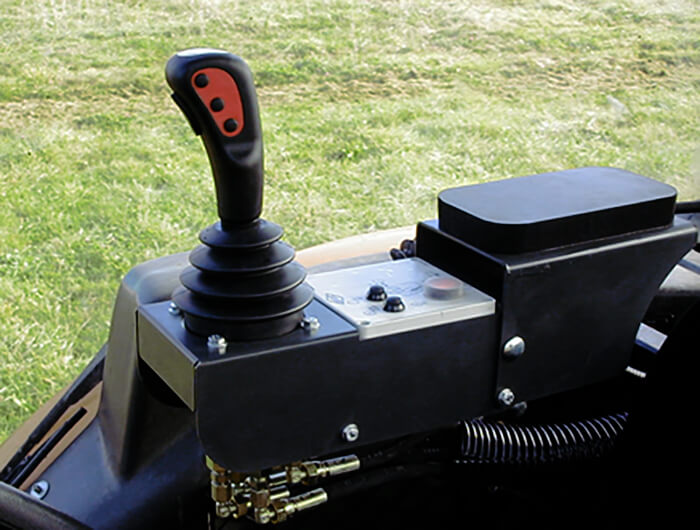

The machine can be guided using the low-pressure hydraulic/electric joystick control for more precise and flexible control, or the remote cable control for a more economical solution.
Can be used with a double cog-type V-belt driven mower unit to create a compact system suited to ditches, or direct drive for greater simplicity.
The pivot with a 116° slew angle allows operators to access even the most hard-to-reach sites.
More compact housing for less overhang behind the tractor, and a sloping lower surface which makes it easier to reach over obstacles.

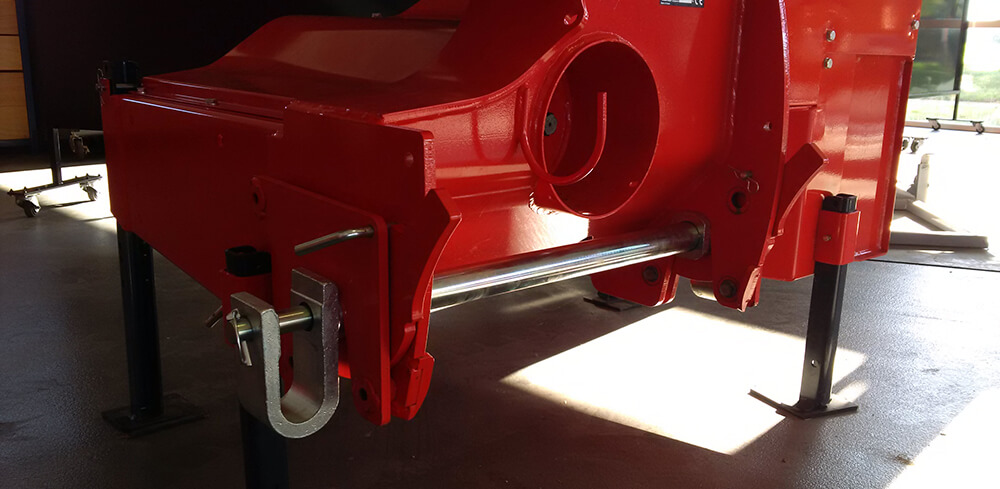

Semi-automatic hitch bar for greater safety and comfort when starting up the machine.

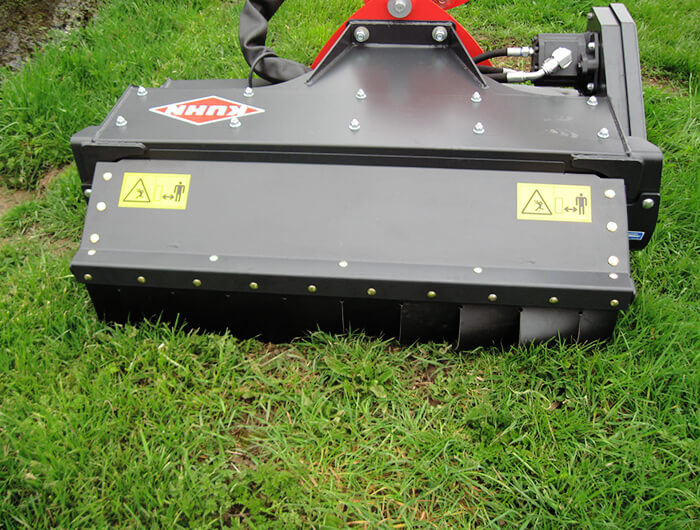

The 1.2 m flail head is fitted with a universal rotor featuring 60 Y-flails (double cog-type V-belt driven mower) or 48 Y-flails (direct drive). The reversible rotor can be turned over to even out wear-and-tear on the blades, as well as the lugs.

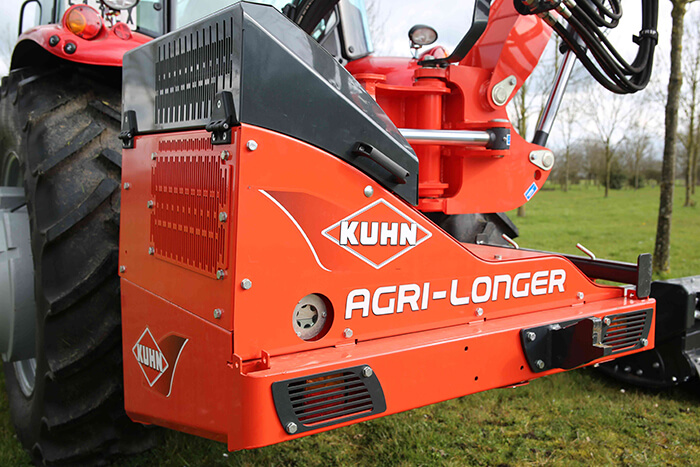

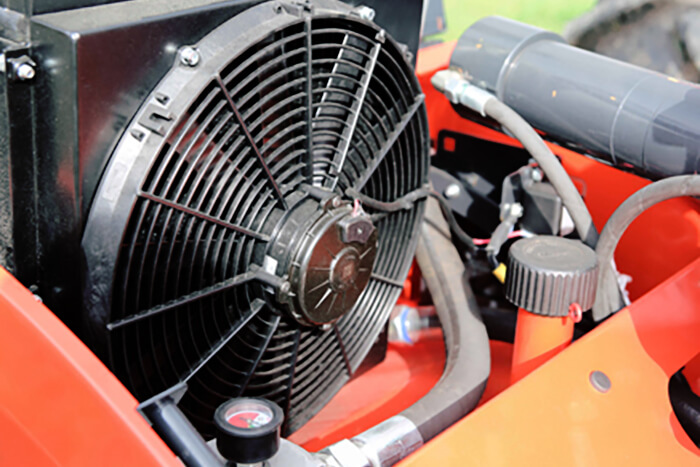

Total protection, with protective fairing for all of the machines' hydraulic components. Oversized 12 kW air-cooled radiator, ensuring a constant power supply to the mowing system. This range is recommended for up to 250 hours of use / year.

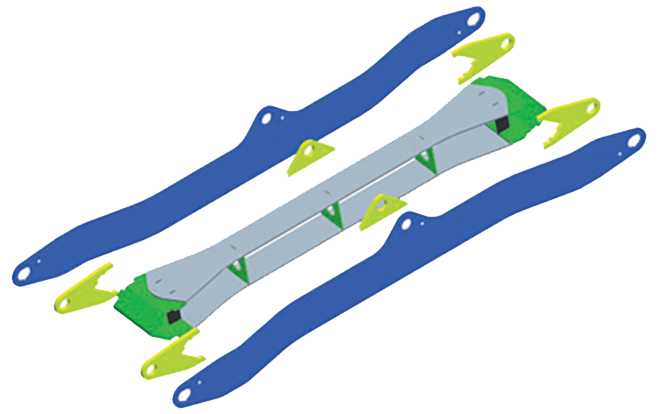

The arm features a reconstituted structure of ultra-high strength steel, similar to the materials used in large-scale professional machines. The mechanical design features larger dimensions to withstand higher loads.

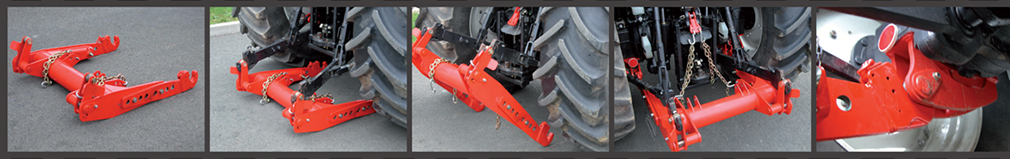

STABI-LINK is a modular linkage frame that can be mounted onto any type of tractor.
It can be installed in 3 different ways: to the tractor lift, to the small connecting rods or in fixed position.
The STABI-LINK frame can be fitted and removed quickly when it is fitted to the tractor lift. The aim is to make the tractor available for other jobs rapidly.
| 5045 P TD | 5045 P TC | 6045 P TD | 6045 P TC | |
|---|---|---|---|---|
| CHARACTERISTICS | ||||
| Horizontal reach (m) | 4.90 | 5.00 | 5.90 | 6.00 |
| Available rotor circuit power at 540 rpm (kW / hp) | 33 / 45 | |||
| Recommended use | Up to 250 hours per year | |||
| Recommended minimum tractor weight (tonnes) | 3.5 | |||
| Minimum power required at tractor PTO (kW / hp) | 51 / 70 | |||
| Arm safety for obstacle clearance | Hydraulic pivot-mounted system with 116° slew | |||
| Kinematics | Compass | |||
| Outer boom | Straight arm | |||
| Hitch category | 3-point cat. 2 and 3 | |||
| Hitch type | Semi-automatic hitch bar + 2 stabilisers with universal joints | |||
| Structure | Main boom with reconstituted ultra-high strength steel structure Main boom section 120 x 120 x 6 to 15 mm Outer boom tubular section 100 x 100 x 8 mm |
|||
| Protective fairing for all components | As standard | |||
| Bumpers with lighting | As standard | |||
| Transport height (m) with 0.5 m ground clearance | 3.43 | 3.64 | 4.00 | |
| Machine weight (kg) | 1 165 | 1 295 | 1 190 | 1 320 |
| HYDRAULICS | ||||
| Oil reservoir capacity (l) | 70 | |||
| 12 kW air-cooled radiator | As standard | |||
| Rotor circuit | Open circuit - Gear pump and motor - Aluminium casing Delivery/pressure: 90 litres at 215 bar - 45 hp - Filter on suction |
|||
| Movement circuit | Open circuit – Gear pump – Aluminium casing Delivery/pressure: 22 litres at 200 bar |
|||
| CONTROLS | ||||
| Pivot, arm and head control | Remote cable or electric low-pressure joystick control | |||
| Two-directional rotor rotation (“grass” and “wood”) | Remote cable control | |||
| Floating head | Electric control | |||
| Hydropneumatic lift float | Electric control | |||
| FLAIL HEAD | ||||
| Drive | Direct drive with motor mounted on rotor end | Double cog-type V-belt drive | Direct drive with motor mounted on rotor end | Double cog-type V-belt drive |
| Effective cutting width (m) | 1.20 | |||
| Rotor speed (rpm) | 2 970 | |||
| Rotor | Universal rotor with 10 mm thick tube (Ø 89 mm dia. tube for direct drive or Ø 102 mm with belt drive) for grass, bramble and wood Ø < 3 cm | |||
| Flails | 48 Y-flails on 12 mm shackles for direct drive or 60 KUHN broad Y-flails on 14 mm shackles for belt drive | |||
| PRO sensor roller with removable ends (140 mm diameter) | As standard | |||
